Products > Gate Operators > Eagle 2000 DC

Standard Features

  • ​Solar Ready (Full Operation without AC Power)
  • ​2-Wire Master/Slave with Global Inputs
  • ​Open/Close Delay
  • On Board 3 Button Station
  • Lightning and Surge Protection
  • ​One Pass (No Tailgate)
  • Motor Brake
  • 24 VDC Output with Relay for MAG Lock
  • Dry Contact Relay (NO/NC) for Accessories
  • ​24 VDC Auxiliary Power Output
  • Stop Reverse
  • ​Auto-Close Timer (1-60 sec.)


​Power Failure Operation

  • ​Selectable Power Fail Open, Close or Continuous Operation
  • ​Minimum 100 Cycles on Battery Backup
  • Auto Power Save Mode


​Operating Classification

  • ​Class I, II, III & IV

​Eagle 2000 DC

Commercial Slide Gate Operators

Hardware

  • ​No-Weld Chain Brackets
  • UHMW Silent Idler Wheels
  • Audio Alarm
  • ​Pre-Wired Receiver Terminal


​Gate Capacity & Operation

  • ​Eagle-2000-DC Maximum Gate: 1400 lbs & 45 ft
  • ​Eagle-2000-DC-HD Maximum Gate: 2400 lbs & 55ft
  • ​12" Per Second Travel
  • ​Rated Continuous Duty


​Dimensions

  • ​27" (h) x 18 1/2" (w) x 19 3/4" (d)


​Shipping Weight

  • ​Eagle-2000-DC: 160 lbs
  • ​Eagle-2000-DC-HD: 175 lbs


Installation Instructions

  • ​Easy to follow instructions.  Available in Spanish.

Laredo, TX - 1-800-996-2966

Laredo Texas - (956)712-0039

Three Rivers Texas - (361)786-6024

Three Rivers, TX - 1-844-502-4327


Enjoy heavy duty power and reliability with worry-free operation even during a complete power failure with The Eagle 2000-DC gate operators.  with 2 models to choose from (standard & HD) these solar ready operators come equipped with a built in battery backup system which will allow the gate to operate at least 100 cycles when power is lost.  Both models use the state of the art DC diamond control board, the most feature packed and installer friendly control board in the industry.  They also feature a heavy duty 24 Volt DC motor that can be powered with 120 volt or 220 volt AC power.  The Eagle 200-DC can be powered by a solar panel when power is not available.  A great energy and cost saving option.  All accessories such as such as safety loops, keypad, etc. will be operational.  Backed by the best in class 5 year warranty, the Eagle-2000-DC is built for gates up to 45 feet or 1400 lbs.

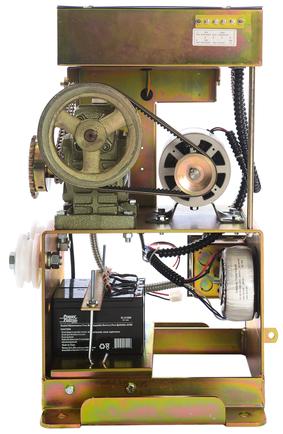

Mechanical

  • ​Chain: #40 Nickel Plated (20 feet)
  • ​Gear Reducer: Size 60
  • ​Cover: All-Weather/UV Resistant (HDPE)
  • ​Chassis: 1/4" Zinc Plated Steel to Resist Corrosion
  • ​Auxiliary 120 VAC Power Outlet


​Power

  • ​Battery: Two 9 Ah 12 V
  • ​1/2 HP Instant Reversing 24 VDC Motor
  • ​3/4 HP Instant Reversing 24 VDC Motor
  • ​Power Input: 120/220 VAC or 24 V Solar


​Optional

  • ​Solar Panel
  • ​12 Ah Batteries (12 V)


​Warranty

  • ​5 Year Limited
