Mechanical

• Drive Chain: #50 Nickel Plated
• Gear Reducer: Size 50 & 40
• Swing Arm with No-Pinch Design
• Cover: All-Weather/UV Resistant (HDPE)
• Chassis: Zinc Plated Steel to Resist Corrosion
• Power Disconnect (1/2 HP)


Manual Release

• Quick Release Lever


Power

• 1/2 HP Continuous Duty AC
• 115 VAC @ 60 HZ 5.7 AMP


Optional

• Power I Battery Backup. Provides up to 40-80 Cycles
• Provides up to 40-80 Cycles

Products > Gate Operators > Eagle II

Hardware

• No-Weld Swing Arm Assembly
• Audio Alarm
• Pre-Wired Receiver Terminal


Gate Capacity & Operation

• Maximum Gate: 14 ft & 400 lbs

• 18 seconds(approx.) to open (0-90 degrees)

• Rated Continuous Duty


Dimensions

• 20″ (h) x 16 1/2″ (w) x 15″ (d)


Shipping Weight

• Eagle-II: 90 lbs


Installation Instructions

• Easy to follow instructions. Available in Spanish.

Eagle II

Laredo, TX - 1-800-996-2966

Laredo Texas - (956)712-0039

Three Rivers Texas - (361)786-6024

Three Rivers, TX - 1-844-502-4327

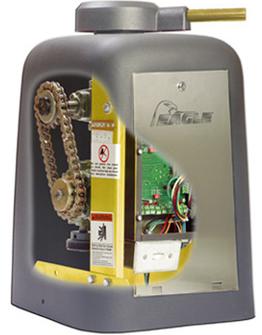

Manufactured with the same quality and engineering as our larger commercial and industrial models, the Eagle-II swing gate operator is designed for residential applications and is built for gates up to 14 feet or 400 lbs. It features the state of the art AC mini control board and comes with a swivel arm hardware that includes a quick release mechanism for operation during a power outage. This model is equipped with a 1/2 horse power motor continuous duty AC motor, a quiet gear box and quality components throughout. The Eagle-II is backed by our best in class 5 year warranty.

Standard Features

• 2-Wire Master/Slave with Global Inputs

• Open/Close Delay

• Motor Brake

• 24 VDC Output for MAG Lock

• 24 VAC Auxiliary Power Output

• Auto-Close Timer (1-60 sec.)


Operating Classification

• Class I

Warranty

• 5-Year Limited (Residential)
